圖片僅供參考，以實物為準
- 名稱：harvard精密微量注射泵控制軟件
- 型號：harvard流量控制軟件
- 品牌：harvard
- 類別：精密注射泵
- 公開報價：請電話咨詢
- 銷售咨詢：010-63836252
產品詳細介紹：
harvard精密微量注射泵軟件
主要特點
單個或多個泵同時控制
輕松地創建簡單的或更高級的方法
多步方法
多臺泵運行在一個鏈或通過USB集線器
顯示所有泵的運行參數
可控制相同或不同型號的泵
圖形方式實時顯示泵的進程
可打印數據

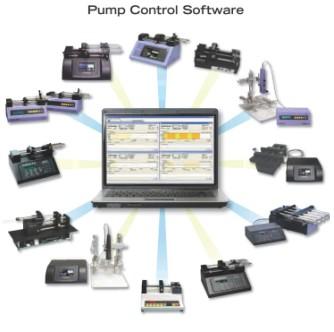

FlowControl™是一個易于使用您的PC上運行的軟件程序
它的設計適用于所有哈佛儀器注射泵，有一個RS - 232包括或USB串行輸入：pump11或更高級，此外，Nanomite，pump22，PHD22/2000系列，OEM模塊的PHD ULTRA™和11型泵的精英系列。哈佛儀器的注射泵，有一個RS -232或USB串行輸入包括：泵11先進，Nanomite，pump22，PHD22/2000系列，OEM模塊和PHDULTRA™和pump11型泵的精英系列。

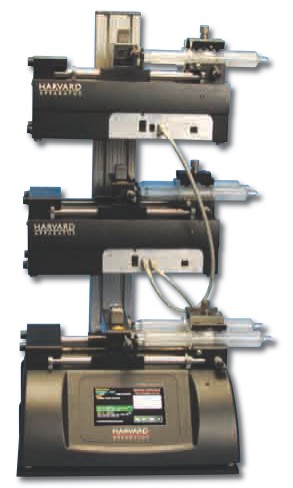

Single or Multiple Pump Control
FlowControl ™ has the ability to control single or multiple pumps.

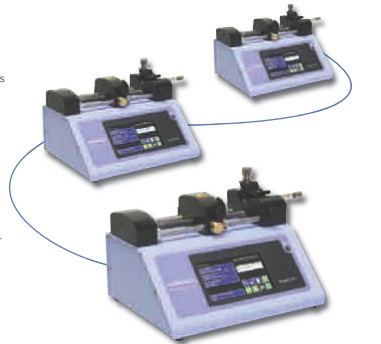

Multiple pumps are controlled in a daisy chain or via USB hub. The
number of pumps allowed in a daisy chain is dependent upon the model.
Individual syringe pumps can be controlled by entering syringe data,
flow rate and choosing a flow direction (infusion or withdrawal). Flow
rate and flow direction can be changed while the pump is running.
FlowControl ™ allows you to create, review, edit, save, recall and
download Methods. You can create simple to complex Methods to
control one or more pumps individually or simultaneously.
Pump Status
The pump configuration screen tells you the status of all defined
pumps. If the light is green, the pump is ready. If the light is gray the
pump is off line. If the light is red the software is detecting the wrong
pump requiring you need to check your connection.
Pump Graph
In addition to the run time execution information in the Method
Execution window, FlowControl allows you to graphically monitor the
real flow progress of each independent pump in the Method Progress
window. The Method Progress screen displays all of the pumping
parameters for the individual pump in an easy to read format. This
allows you to monitor infuse and refill rates and volume dispensed.
Data Log
FlowControl creates a data log that tracks the activity of your pump
based on a specific Method. When a data log is created three different
files are generated with the same name but different extensions; excel
report (*.xls), bitmap report (*.bmp) and experimental notes (*.txt).
The bitmap report shows a screen shot of the pump flow evolution
chart from the Method Progress window. Experimental Notes are notes
typed in the Method Progress window by the user. The Excel report
provides details about the Method parameters.
